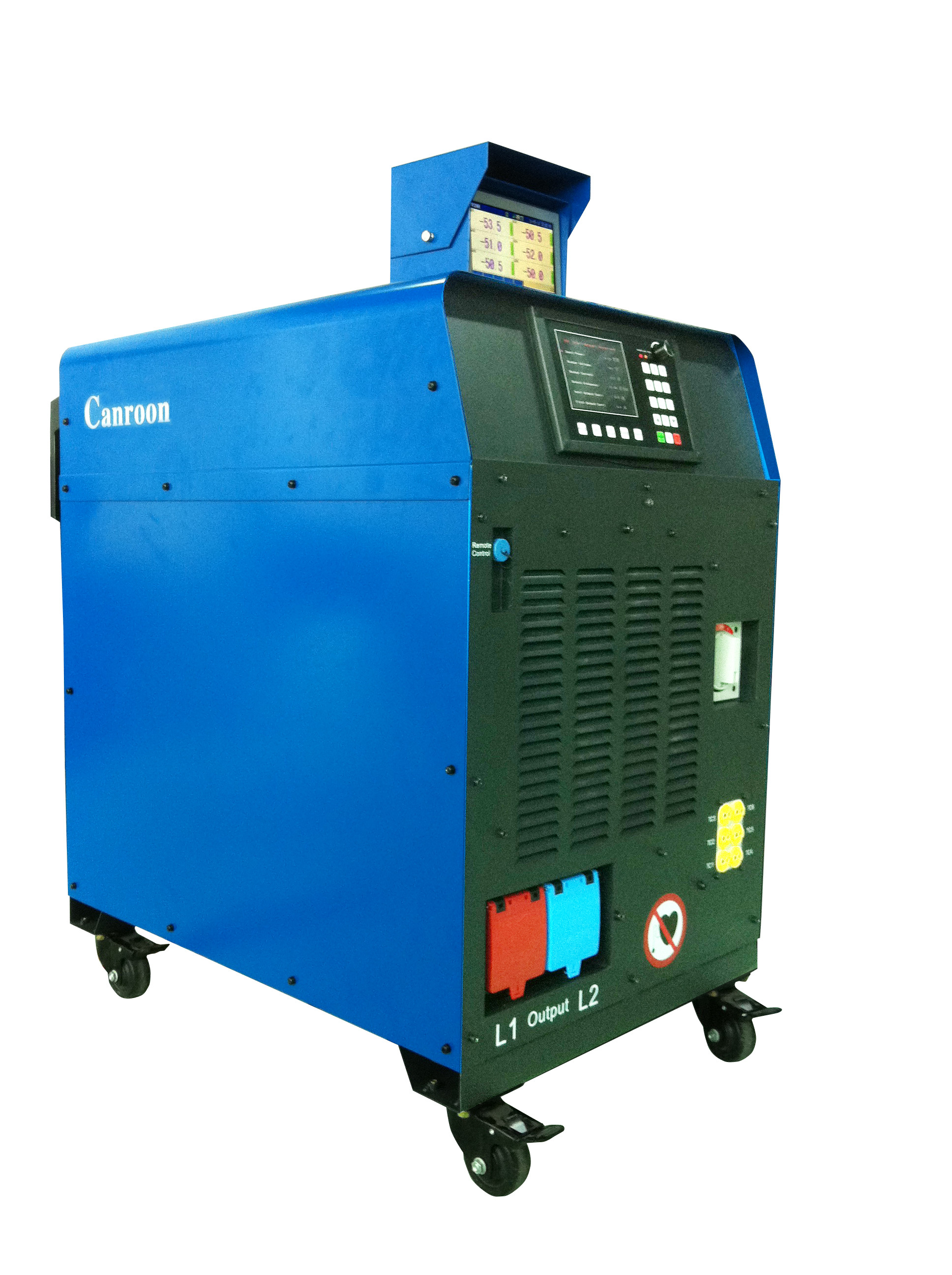

1450°F Air-Cooled Induction Preheater | 6-Zone Control & Fast Heating CR2000 Series

80Kw Preheating Induction Hardening Machine For Structural Steel Tube to 300°F

Quick Detail:

Type:Other

Place of Origin:China (Mainland)

Brand Name:Canroon

Model Number:CR2000-080A-14T

Voltage:380V

Current:122A

Rated Capacity:80KW

Rated Duty Cycle:80KW

Dimensions:880*663*982

Weight:201Kg

Usage:induction temperature stress relievers

Certification:CE ISO9001:2008

After-sales Service Provided:Overseas service center available

Process:Induction heating equipment

Input Power:380V,3-Phase

Temperature recorder:6 Channel temperature recorder

Description:

Move beyond conventional limits. The CR2000 combines air-cooled operation (up to 1450°F) with intelligent features to eliminate hotspots and delays. Its six-zone thermal control guarantees uniformity, while the programmable interface and built-in coaching empower any operator to achieve peak coil performance and flawless ramp/hold cycles with ease.

Applications:

With the introduction of the Induction Pipe preheat , this simple and cost-effective heating process can be applied in the following applications to deliver fast and consistent heat:

• Welding fabrication and construction;
• Preheating of welds;
• Post-weld heat treatment;
• Coating removal;
• Shrink Fit and so on
• Pre-heating of structural steel tube to 300°F

Specifications:

Competitive Advantage:

• ersatile Mobility: Optional running gear for easy transport.

• Smart Control: Programmable temperature profiles via a simple interface.

• Perfect Uniformity: Multi-TC control for consistent heating and cooling.

• Built-in Safety: Open output detection and ground fault protection.

• Low Operating Cost: No fuel, reusable insulation (50+ cycles).

• Superior Quality: Induction heating prevents surface damage.

• Extreme Speed: Faster time-to-temperature boosts productivity.

• Worker Safety: No open flame or explosive gases.

• High Efficiency: >90% energy transfer to the part.

• Easy Setup: Flexible blankets and user-friendly insulation.
