788°C High-Temperature PWHT Machine | 3-Phase 400V Industrial PWHT System
Place of Origin Shenzhen, China
نام تجاری Canroon
گواهی CE ISO9001
Model Number CR2000
Minimum Order Quantity 1
قیمت Negotiated price
Packaging Details wooden box
Delivery Time 7-15 days
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 2000 Piece/Pieces per Week
جزئیات محصول
Temperature Control Infrared Sensor Or Thermcouple Inductance Range 2.2-300uH
Weight 22kg Input Power 20KVA
Machine Type Induction Heating Machine Output Frequency 3-15KHz
Control Model Digital Control Dimension W: 262.4mm H: 304mm D: 545mm
توضیحات محصول

Product Description:

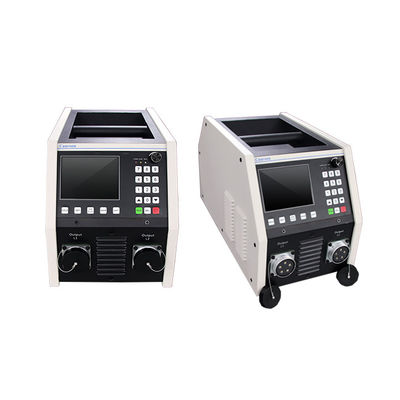

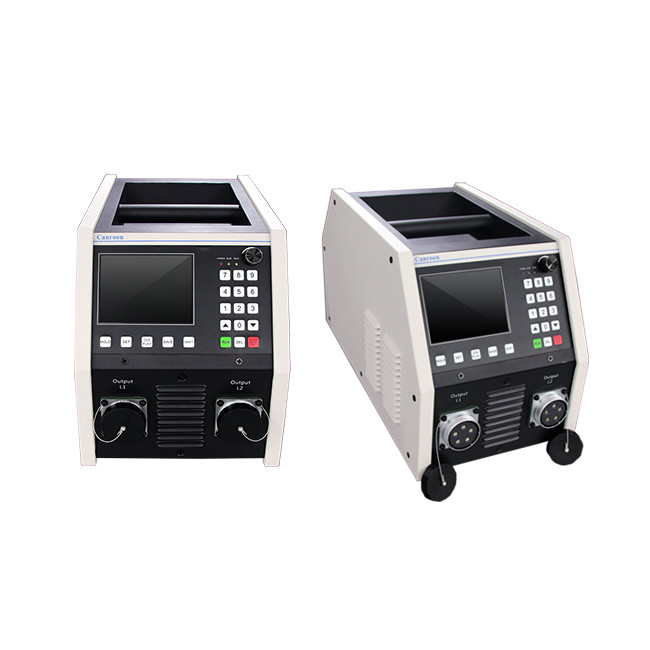

The CR2000 Series PWHT Machine delivers industrial-grade performance with its 20KVA power input and Infineon IGBT technology, ensuring stable operation even for demanding heat treatment processes. Featuring an adjustable 3-15KHz output frequency and multiple control modes (Manual/Auto/PID), it provides precise temperature control up to 1300°C. The air-cooled design eliminates water cooling requirements while the lightweight (22kg) construction enables easy portability. Operates on 3-phase 400V (±20%) power with 24-36A input current and 2.2-300uH inductance range.



788°C High-Temperature PWHT Machine | 3-Phase 400V Industrial PWHT System



Features:

  • Product Name: PWHT Machine
  • Control Model: Digital Control
  • Cooling Method: Air Cooling
  • Output Power: 18KW
  • Temperature Control: Infrared Sensor Or Thermcouple
  • Input Current: 24-36A
  • Professional applications
  • Monitoring of run status and fault protection


Technical Parameters:

Input Voltage 3phase 400V(+20%)
Temperature 788℃
Control Model Digital Control (Multiple control mode built-in, Advanced system integration)
Weight 22kg
Inductance Range 2.2-300uH (Heating with Clamp-type Inductor)
Output Power 18KW
Machine Size 262.4*304*545mm
Application PWHT
Igbt Infineon IGBT
Temperature Control Infrared Sensor Or Thermcouple


Applications:

Specifically engineered for critical industrial heat treatment applications:

  • Stress relieving of pipelines (API/ASME compliant)
  • Post-weld treatment of pressure vessels and boilers
  • Annealing processes in power generation equipment
  • Petrochemical plant maintenance operations
  • Weekly production capacity: 2000 units.



788°C High-Temperature PWHT Machine | 3-Phase 400V Industrial PWHT System



Customization:

Brand Name: Canroon

Model Number: CR2000

Place of Origin: Shenzhen, China

Certification: CE ISO9001

Minimum Order Quantity: 1

Price: Negotiated price

Packaging Details: wooden box

Delivery Time: 7-15 days

Payment Terms: L/C, T/T, Western Union,Paypal

Supply Ability: 2000 Piece/Pieces per Week

Intput Current: 24-36A

Cooling Method: Air Cooling

Output Power: 18KW

Inductance Range: 2.2-300uH

Temperature: 788℃

Advanced system integration, Heating with Clamp-type Inductor, CR2000 series - the rightful choiee of an intelligent, safe, clean and ranid heating



788°C High-Temperature PWHT Machine | 3-Phase 400V Industrial PWHT System



FAQ:

What is the brand name of the PWHT Machine?

The brand name of the PWHT Machine is Canroon.

2.

What is the model number of the PWHT Machine?

The model number of the PWHT Machine is CR2000.

3.

Where is the PWHT Machine manufactured?

The PWHT Machine is manufactured in Shenzhen, China.

4.

What certifications does the PWHT Machine have?

The PWHT Machine has CE and ISO9001 certifications.

5.

What is the minimum order quantity for the PWHT Machine?

The minimum order quantity for the PWHT Machine is 1.

6.

What is the price of the PWHT Machine?

The price of the PWHT Machine is negotiated.

7.

How is the PWHT Machine packaged?

The PWHT Machine is packaged in a wooden box.

8.

What is the delivery time for the PWHT Machine?

The delivery time for the PWHT Machine is 7-15 days.

9.

What are the payment terms for the PWHT Machine?

The payment terms for the PWHT Machine are L/C, T/T, Western Union, and Paypal.

10.

What is the supply ability of the PWHT Machine?

The supply ability of the PWHT Machine is 2000 Piece/Pieces per Week.
